Seiko 28504R Quartz Clock Movement

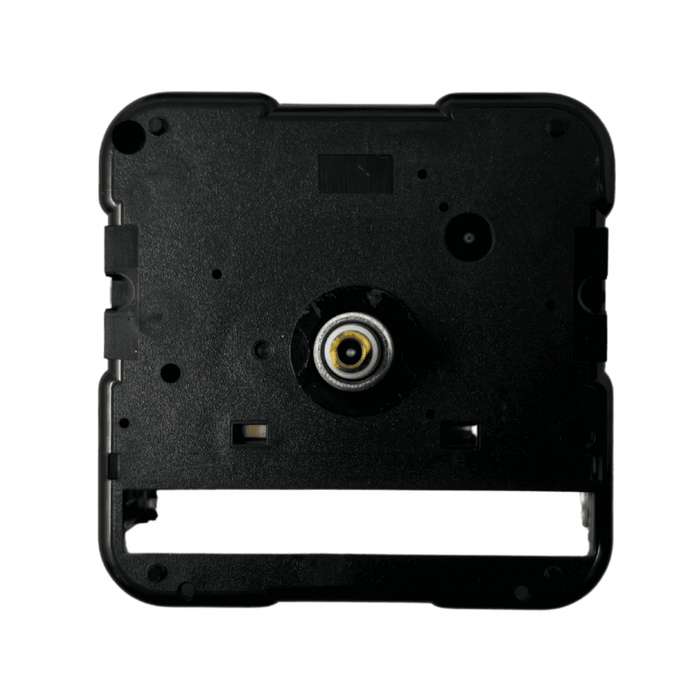

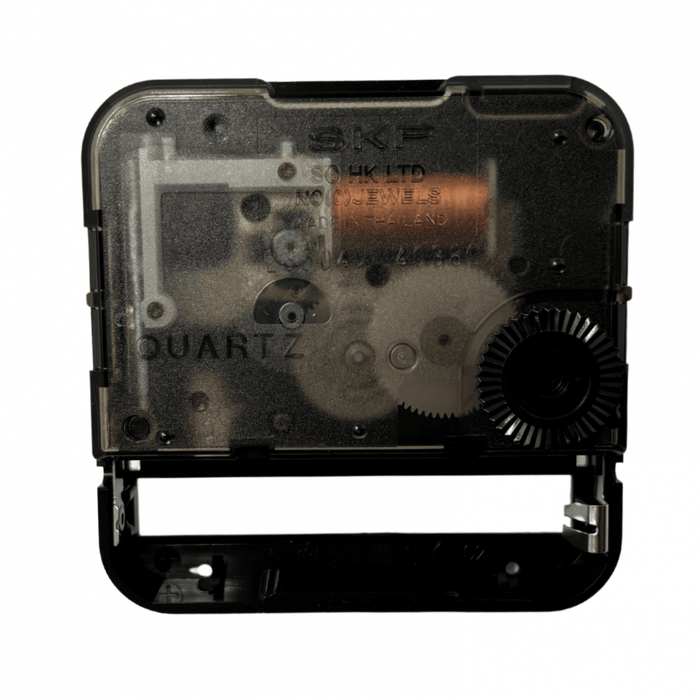

  • A Seiko replacement clock movement
  • Hands are not included

Specifications:


  • Hand shaft: Euro fitting
  • Seiko calibre: 28504
  • Seconds: Step seconds

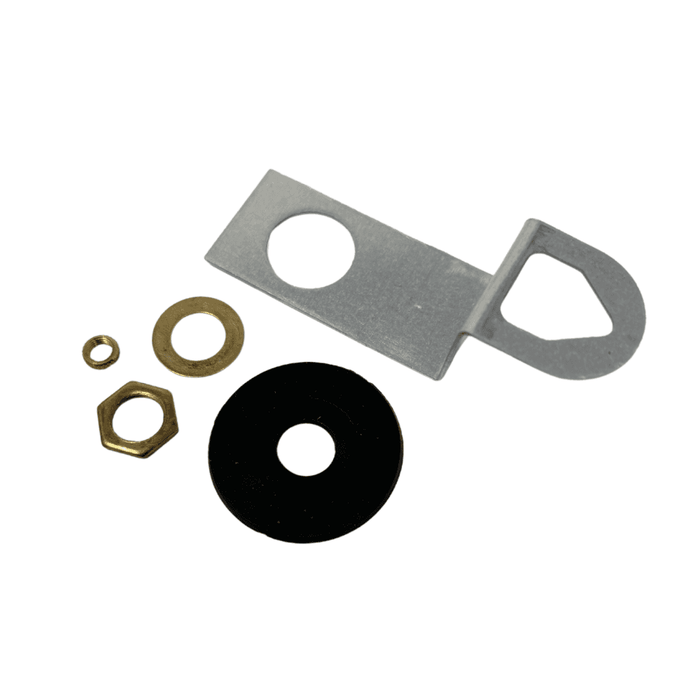

  • Supplied with: 1 hanger, 1 minute hand nut, 1 centre fixing nut, 1 back cushion, 1 washer
  • Maximum hand lengths and weights: Minute: 160mm, 5g | Seconds: 130mm, 2g
  • Battery: LR6
  • Dimensions: 57 x 57 x 17 mm
  • Hand collet dimensions: Hour: Ø5.0mm | Minute: 3.8 x 2.8 mm
  • Shaft length (movement front to centre shaft tip): 16.5mm
